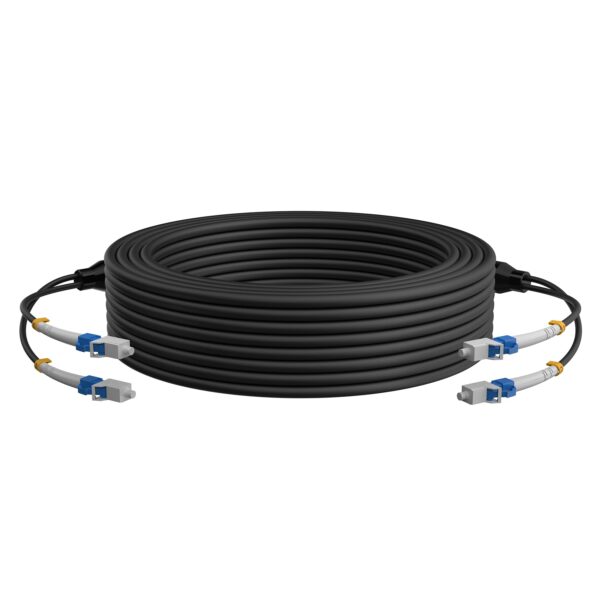

OS2 duplex breakout armored cable coil

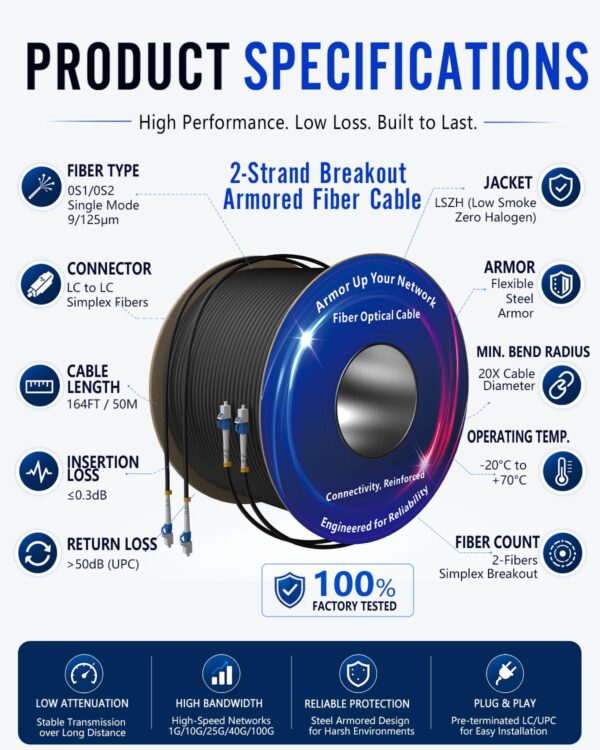

2-2 breakout cable specifications table
2-fiber breakout cable features

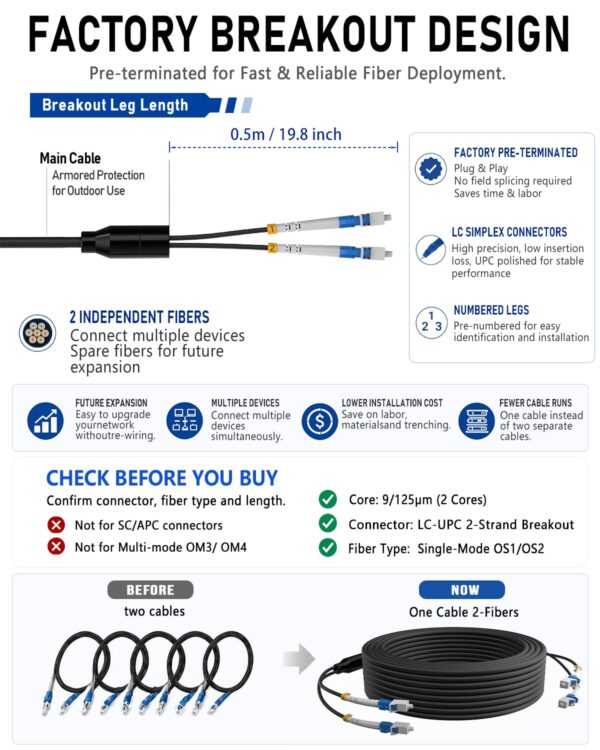

Factory breakout design, 0.5m legs

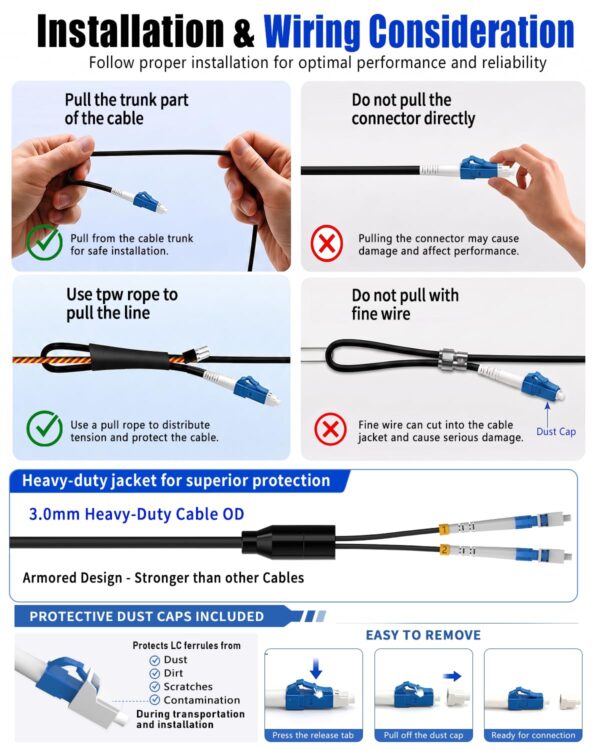

Installation and wiring notes

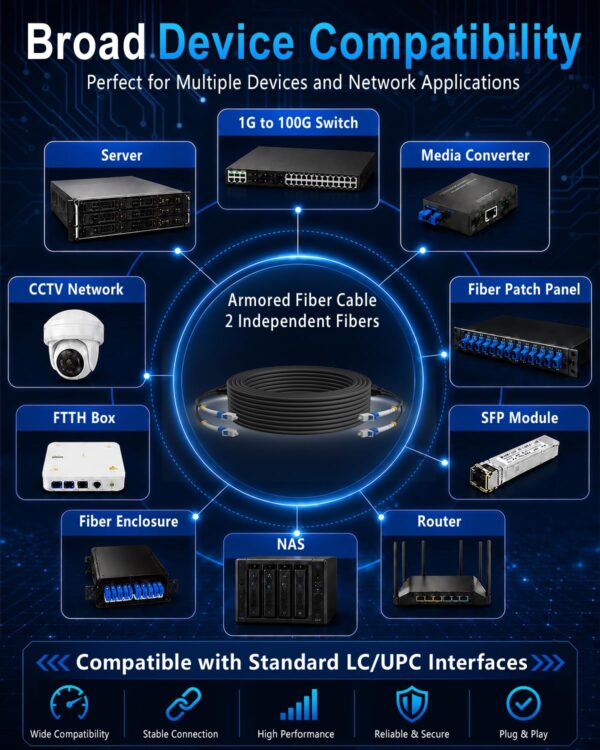

Device compatibility
Application scenarios
  1. OS2 duplex breakout armored cable coil
  2. 2-2 breakout cable specifications table
  3. 2-fiber breakout cable features
  4. Factory breakout design, 0.5m legs
  5. Installation and wiring notes
  6. Device compatibility
  7. Application scenarios

OS2 Armored Fiber Optic Patch Cable — LC to LC Duplex, Separate Connectors (2-2), Single Mode 9/125μm

Price range: $27.49 through $394.99

Armored OS1/OS2 single-mode duplex patch cable with two separate LC/UPC connectors per end (2-2 style). Fixed lengths 10m–500m.

SKU: N/A Categories: ,

Pre-terminated armored single-mode duplex patch cable — two separate LC/UPC simplex connectors per end (2-2 breakout style, 0.5m legs). Fixed-specification lengths — no custom cutting.

Fiber Mode OS1/OS2 Single Mode 9/125μm
Fiber Count 2 Fibers (Duplex), separate LC connectors per end
Connectors LC/UPC ×2 to LC/UPC ×2 (blue), numbered legs
Insertion / Return Loss ≤0.3dB / >50dB (per listing spec image)
Jacket / Armor LSZH jacket + flexible stainless steel tube; branch OD 3.0mm
Breakout Length 0.5m (19.8in) per end
Temperature −20°C ~ +70°C (per this batch’s spec image)

Specs from this batch’s own listing spec image. No UL/OFNR/OFNP rating is claimed.

Length

10 m (33 ft), 100 m (328 ft), 15 m (49 ft), 150 m (492 ft), 20 m (66 ft), 200 m (656 ft), 30 m (98 ft), 300 m (984 ft), 37 m (121 ft), 400 m (1312 ft), 50 m (164 ft), 500 m (1640 ft), 75 m (246 ft)
Fiber Mode

OS2 Single-Mode
Fiber Count

2-Fiber (Duplex)
Connectors

LC/UPC to LC/UPC
